In today's data-centric era, from 5G base stations to data center interconnects and high-definition video transmission, all information highways rely on a core component: the optical transmitter.
As the "starting point" of an optical communication system, the optical transmitter is responsible for converting electrical signals into optical signals and coupling them into the optical fiber. This article delves into the technical principles, key components, core specifications, and industry technology trends of optical transmitters for 2024-2025.
1. What is an Optical Transmitter?
An optical transmitter is an electro-optical conversion device. At the physical layer, its operational workflow can be summarized in three steps:
Input Processing: Receives electrical signals from network equipment (such as switches and routers).
Electro-Optical Conversion: Modulates the light source (laser diode or LED) via a driver circuit, converting the 0/1 bits of the electrical signal into light pulses representing on/off states or phase changes.
Coupling Output: Efficiently injects the light into an optical fiber (single-mode or multi-mode) using lenses or direct coupling techniques.

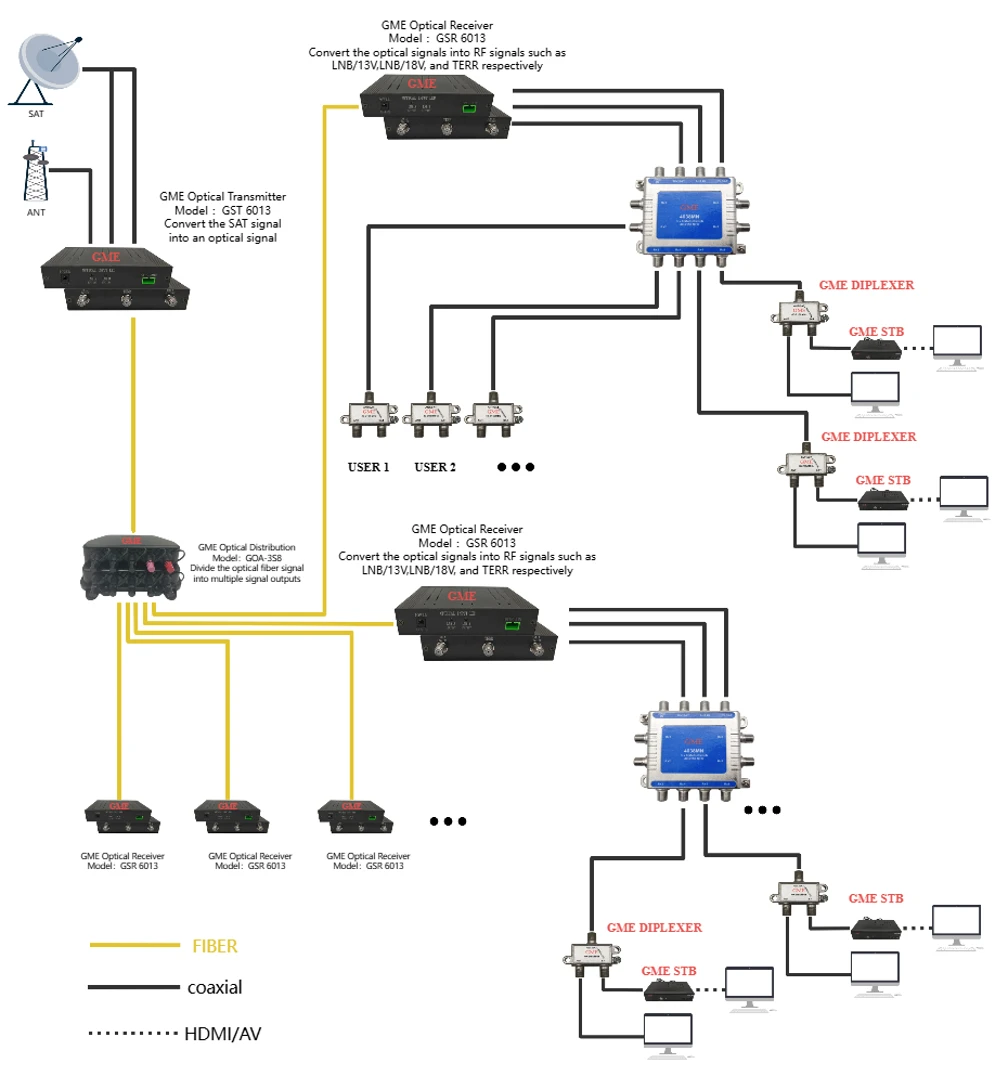

Depending on the application scenario, transmitters are typically packaged inside pluggable optical modules (such as SFP, QSFP-DD, OSFP) or as part of broadcast-grade video optical transmitters and analog optical fiber transmission systems.
2. Analysis of Core Technology Components
A high-performance optical transmitter mainly consists of the following three parts, which account for a significant portion of the technical difficulty and cost:
2.1 Light Source: VCSEL, FP, DFB, and EML
The light source determines the transmitter's wavelength, power, and transmission distance.
VCSEL (Vertical-Cavity Surface-Emitting Laser): Dominates short-distance (within 100 meters) multi-mode applications, such as SR (Short Range) optical modules within data centers. Advantages include low power consumption, low cost, and ease of large-scale array integration.
FP (Fabry-Perot Laser): Used for early-stage short-to-medium distance applications; currently being phased out in high-rate applications in favor of DFB lasers.
DFB (Distributed Feedback Laser): The workhorse for single-mode transmission. It achieves single longitudinal mode output through a built-in grating, resulting in a narrow spectral linewidth and low dispersion penalty, suitable for distances from 10km to 80km in metro networks and long-haul trunk lines.
EML (Electro-absorption Modulated Laser): Currently the mainstream choice for 400G/800G high-speed backbone networks. It integrates a laser with an electro-absorption modulator, overcoming the "chirp" effect associated with directly modulated lasers (DML) at high frequencies, supporting single-wavelength rates of 100Gbps and beyond.
2.2 Driver Circuit
Laser diodes require stable bias current and modulation current. Driver chips in high-speed transmitters require high linearity (especially for PAM4 modulation) and low power consumption. As speeds increase to 112Gbps and even 224Gbps, driver chip design has become a critical bottleneck limiting transmitter performance.
2.3 Packaging and Optical Coupling
The packaging precision for transmitters needs to reach sub-micron levels. For silicon photonics (Silicon Photonics) transmitters, flip-chip technology is often used to integrate the laser chip with the silicon-based photonic chip, coupling light into the waveguide through edge coupling or grating coupling.
3. Key Performance Indicators
When evaluating or selecting optical transmitters, engineers should focus on the following key parameters:
Wavelength: 850nm (multi-mode), 1310nm (zero dispersion), 1550nm (lowest loss). CWDM and DWDM technologies utilize multiple wavelengths between 1260nm and 1650nm for wavelength division multiplexing.
Output Optical Power: Typically measured in dBm. Longer transmission distances require higher output power, which must be kept below the nonlinear effect threshold of the optical fiber.
Extinction Ratio (ER): The ratio of average optical power for logic "1" to logic "0". A higher extinction ratio results in a better signal-to-noise ratio at the receiver and a lower Bit Error Rate (BER).
Eye Diagram: An intuitive metric for signal quality. In high-speed transmitter testing, the eye diagram must conform to IEEE standards or MSA (Multi-Source Agreement) eye mask specifications, ensuring minimal excess jitter and noise.
Center Wavelength and Spectral Width: For DWDM systems, the transmitter's wavelength must lock onto the grid specified by the ITU-T. A narrower spectral width enhances tolerance to chromatic dispersion.
4. Industry Trends: Evolution from 400G to 1.6T
Driven by the exponential growth in bandwidth demand from AI model training and cloud computing, optical transmitter technology is undergoing unprecedented changes:
4.1 The Advent of the Single-Wavelength 200G Era
800G optical modules are currently being deployed at scale, internally utilizing transmitter architectures such as 8x100Gbps or 4x200Gbps. Leading industry manufacturers are developing single-wavelength 200G EML and silicon photonic modulators, paving the way for 1.6T optical modules.
4.2 Accelerated Commercialization of Silicon Photonics
Traditional discrete transmitters (DFB with separate modulator) are facing bottlenecks in cost and high-density integration. Silicon photonics leverages CMOS processes to integrate modulators on a silicon substrate, combined with external or hybrid-integrated III-V lasers, achieving high-yield, low-cost large-scale photonic integration.
4.3 Linear Drive Pluggable Optics (LPO) and Co-packaged Optics (CPO)
To reduce power consumption in AI computing centers, LPO technology is emerging. LPO transmitters eliminate the traditional DSP (Digital Signal Processor), using linear driver chips to directly drive the laser, reducing power consumption by approximately 50%. Looking further ahead, CPO technology aims to package optical transmitters together with the switching chip, fundamentally solving the issue of high-frequency electrical signal loss in PCB traces.
4.4 Breakthroughs in Thin-Film Lithium Niobate (TFLN)
In the pursuit of higher bandwidth and lower power consumption, thin-film lithium niobate modulators have become a research hotspot. They offer superior linearity and high bandwidth compared to silicon photonic and InP modulators, positioning them to play a significant role in next-generation 1.6T/3.2T transmitters.
5. Conclusion
The optical transmitter is not only the physical starting point of optical communications but also the "core engine" determining network bandwidth, transmission distance, and system cost.
For industry users, when selecting optical transmitter solutions, it is essential to look beyond just the "rate" parameter. A comprehensive evaluation should include:
Application Scenario: Short-distance interconnection within data centers versus long-haul telecommunications backbone networks.
Cost Structure: VCSEL solutions are suitable for large-scale short-distance applications; EML and silicon photonics are suitable for high-performance scenarios.
Supply Chain Reliability: The capacity for high-speed laser chips remains tight. Choosing manufacturers with independent chip R&D capabilities or stable supply chains is crucial.
With the explosion in demand for AI compute power, the optical communications industry is transitioning from the traditional model of "electricity driving optics" towards a new era of "optics defining networks." As the starting point of the optical network, every technological leap in optical transmitters will define the bandwidth ceiling for the next generation of digital and intelligent infrastructure.
